Rail Transfer Cart Heavy Equipment Machinery Transport

  • Model : KPDS-2t
  • Rated Load(T) : 2T
  • Wheel Base(Mm) : 1200
  • Motor Power(Kw) : 0.8
  • Max Wheel Load(KN) : 14.4
  • Speed : 20 m/min

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with :
  • 63t-rail-transfer-cart
  • rail-transfer-cart-150t
  •  pipe-handling-cart
  •  coil-transport-car
  • 10t-transfer-wagon
Main Products
On-rail Transfer Cart
Custom Transfer Machine
Trackless Transfer Car
Hoisting Equipment
Industrial Trailer

Need Help?

or Email us:

sale@perfte.com
■ Overview

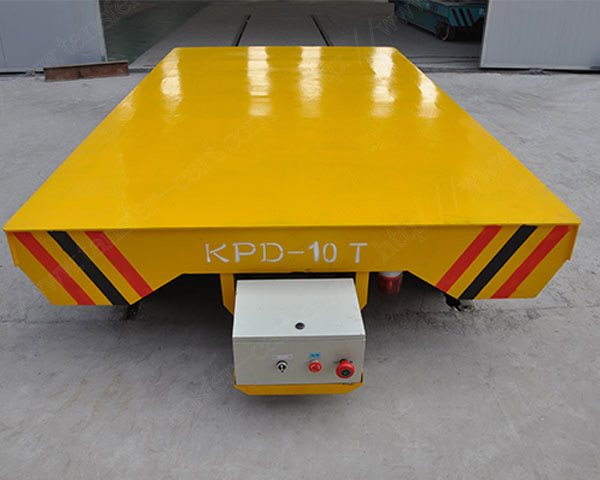

Rail Transfer Cart Heavy Equipment Machinery Transport

KPDZ Series Rail Transfer Cart Working principle

KPDZ series rail transfer cart adopts low-voltage rails to supply power. AC 380V is firstly transformed into AC 36V through transformer into the two rails. Then AC 36V is turned into DC 36V by the current rectifier, providing power to DC motor.The rail transfer cart is suitable for transferring heavy duty material from one location to another. It can be divided into two types: KPDZ Series and KPDS Series.

KPDZ Series Rail Transfer Cart Advantages

• Unlimited running time.
•
Be suitable for long distance transportation.
•
Safe and flexibility.
•
High using frequency.

Why Would You Choose KPDZ Rail Transfer Cart

• With electricity from the rail, the transfer car is driven to start, stop, go forward and backward and adjust its speed. The voltage is low, thus it is very safe to operate the low-voltage powered transfer car.
•
This kind of rail transfer cart is suitable to applied in the low car height transportation.
DC motor is applied in KPDZ series transfer car. DC motor has the advantage of stable start, low starting voltage, large carrying capacity and saving energy.
Each of KPDZ transfer car goes through a series of thorough testing and precise steps before being shipped on board.



■ Technical Data
Technical Parameters for Rail Transfer Carts Powered by Conducting Rail
Model KPDZ-2t KPDZ-5t KPDZ-10t KPDZ-16t KPDZ-20t KPDZ-25t KPDZ-30t KPDZ-40t KPDZ-63t
Rated Load(t) 2 5 10 16 20 25 30 40 63
Table Size(mm) Length( L) 2000 3500 3600 4000 4000 4500 4500 5000 5600
Width( W) 1500 2000 2000 2000 2200 2200 2200 2500 2500
Height( H) 450 450 500 500 550 600 600 650 750
wheel Diameter(mm) Ф270 Ф300 Ф300 Ф350 Ф350 Ф400 Ф400 Ф500 Ф600
Wheel Quantity 4 4 4 4 4 4 4 4 4
Running Speed(m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20
Running Distance(m) 80 80 80 80 80 80 80 60 50
Reference Weight(t) 2.8 3.6 4.2 5.5 5.9 6.5 6.8 7.6 10.8

■ Application
Application of Rail Transfer Cart

Low cart height transportation.
Steel pipe transferring.
Shipbuilding industry.
Metallurgy plant.
Custom from 1t to 300t.

For your information:

Safe operation.
Distance exceeds 70m, there need extra transformer.
Load is more than 50t, a conductor rail need to be increased.
